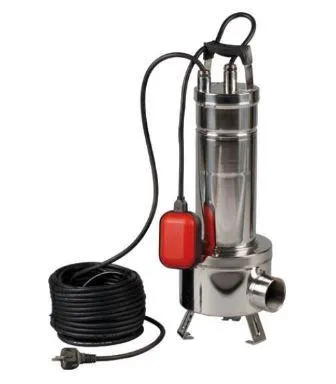

DAB Submersible Pump - FEKA VS 750 M-A

Product Description

The Feka VS 750 M-A is a stainless steel submersible centrifugal pump with microcast steel liquid vortex impeller, suitable for lifting sewage and drain water in general containing solid matter with size up to 50 mm.

Technical Data

• Operating range: 0 to 24 m3/h, up to 9.7m head.
• Free passage: 50 mm.
• Liquid temperature range: 0 °C to 35 °C
• ambient temperature for operation with motor above water: 40 °C
• Maximum immersion depth: 7 meters.
• Motor protection class: IP 68
• Insulation class: F
• Standard voltage: 220-240 V - 50Hz single-phase.
• Power cable: 10meter H07RN-F, with plug for the single-phase version.

Materials

• Pump Body: AISI 304
• Impeller: AISI 304
• Motor Shaft: AISI 316
• Mech Seal
  - Pump side: Silicon Carbide/ Silicon Carbide.
  - Motor Side: Carbon/ Alumina
• Seal Cover: AISI 304
• Motor Casing: AISI 304
• Handle: AISI 304, insulated rubber coating.
