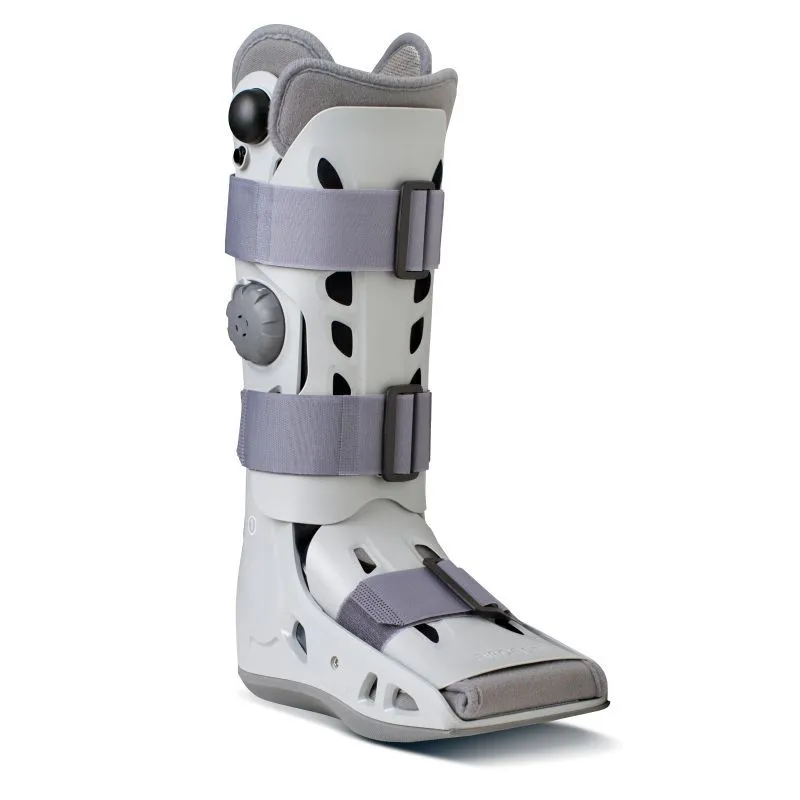

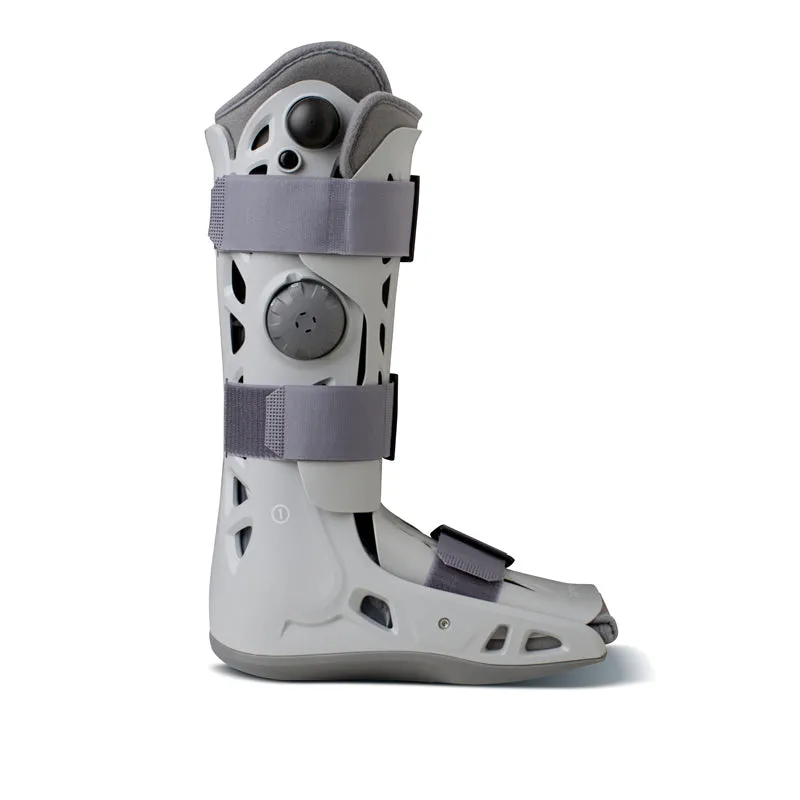

The Elite is the most-advanced walking boot, engineered to provide the ultimate in protection, comfort, and edema control.
- Stable fracture of foot/ankle/lower leg
- Severe ankle sprain
- Post-operative immobilization
- Reduction of edema (swelling) 3x faster1.

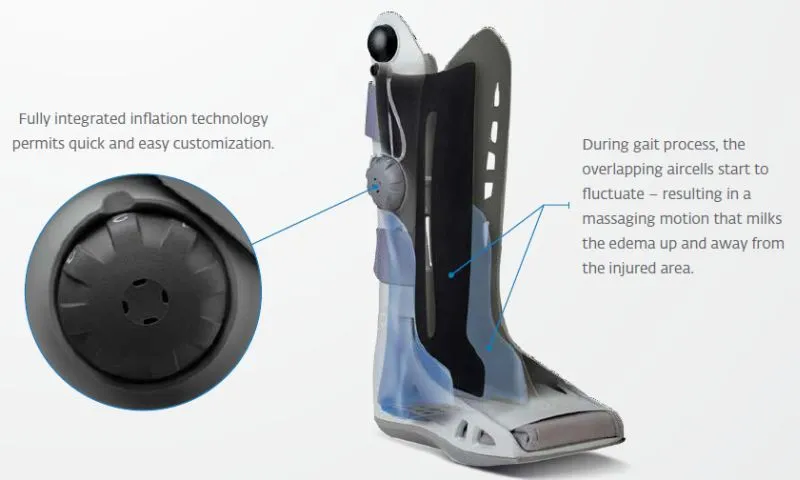

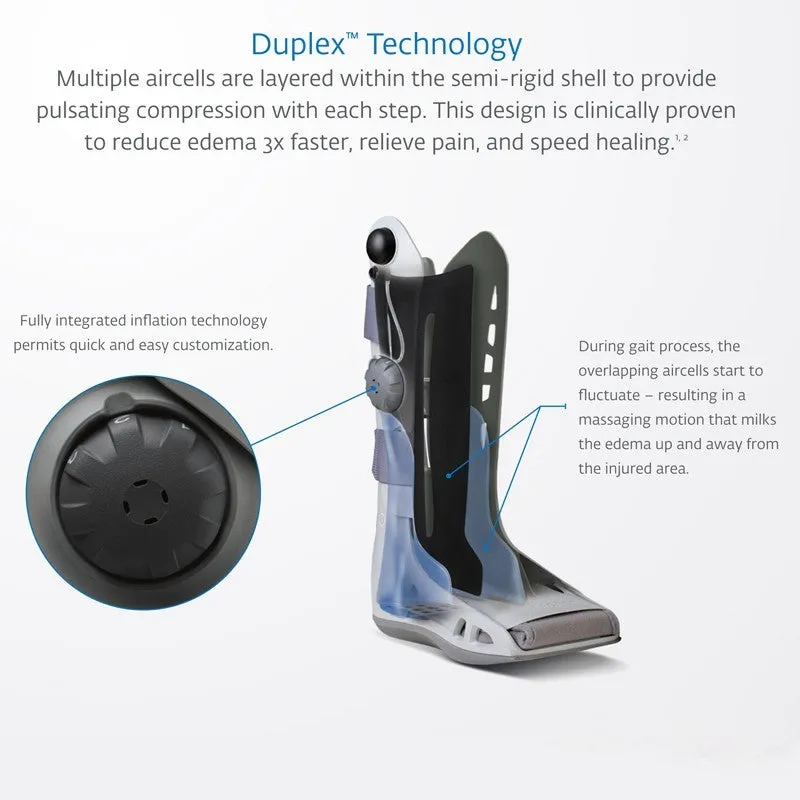

The Elite has a durable, semi-rigid shell that helps support the limb while providing full-shell protection. Overlapping Duplex aircells line the shell providing intermittent pneumatic compression for 3x faster edema reduction1. The front panel is pre-inflated and combined with the overlapping aircells, provides a 'total contact' fit. SoftStrike technology absorbs and dissipates shock, while the light weight and lab-tested rocker sole combine to encourage a natural gait and a continuation of everyday activities.
Features
- Integrated inflation system (NO separate hand bulb)
- Integrated inflation system puts the patient in control for an individualized fit - Non-marking, skid resistant rubber tread
- For greater traction and longer wear - Duplex technology
- Promotes faster edema reduction, thus promoting pain relief, patient compliance and faster healing 1,2 - SoftStrike technology

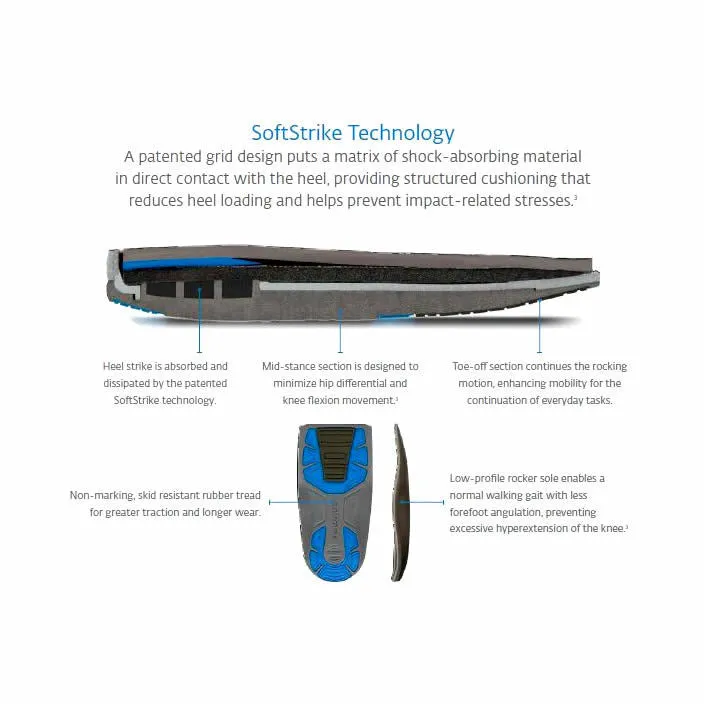

- Absorbs and dissipates the energy during heel strike
- Reduction of heel pain - Low profile optimized rocker sole
- The lab-designed rocker sole, enables a normal walking gait with less forefoot angulations' and reduces hyperextension of the knee
- Toe-off section continues the rocking motion, enhancing mobility

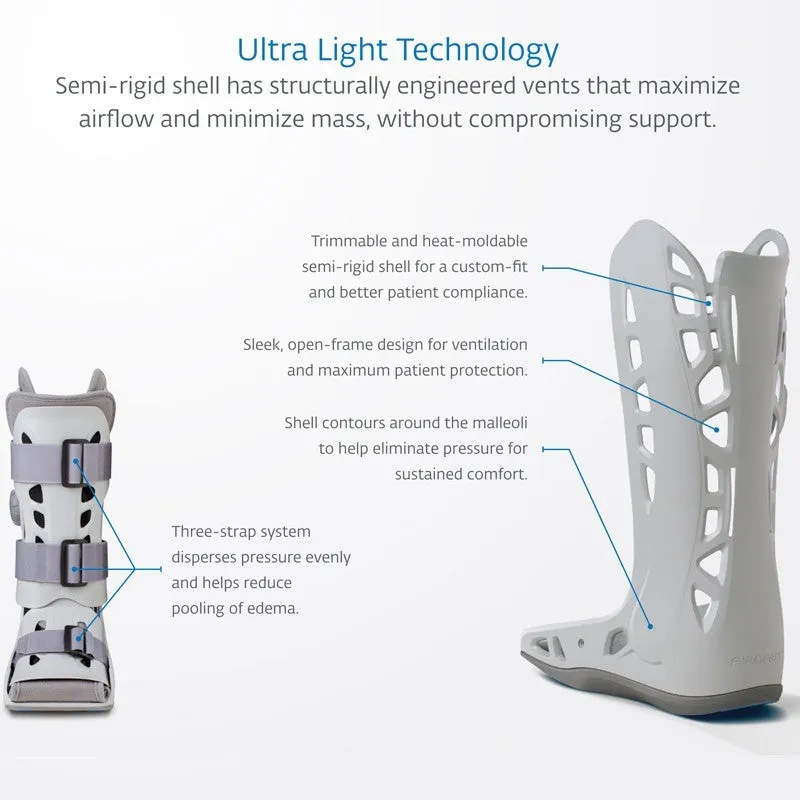

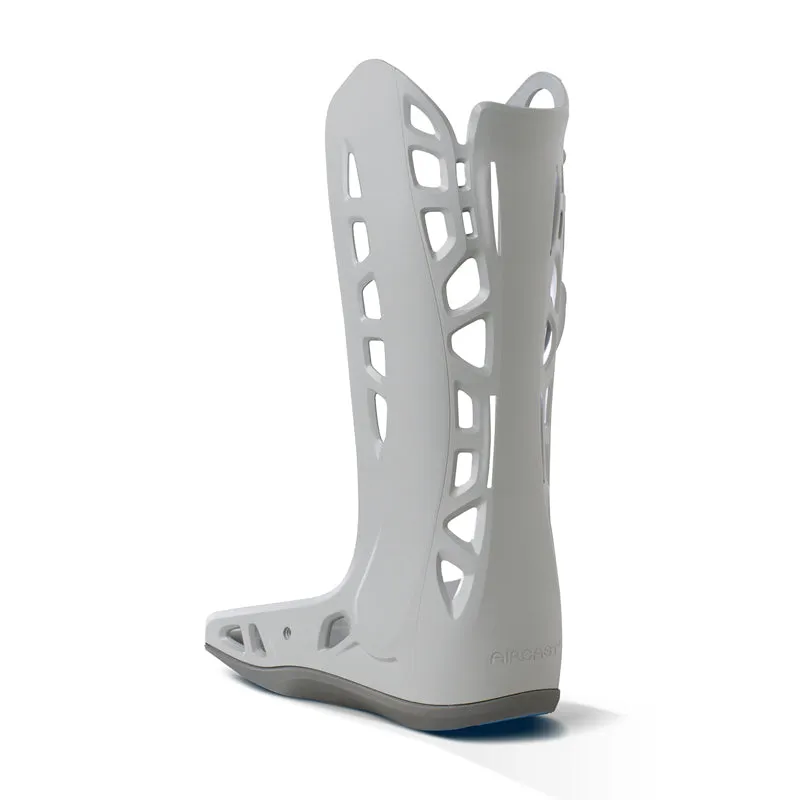

- Mid-stance section is designed to minimize hip differential - Trimmable and heat moldable semi-rigid shell
- Makes it easy to custom-fit the brace to the patient for a more comfortable fit
- Sleek, open-frame design provides ventilation and maximum patient protection and compliance
- Shell contours around the malleoli, eliminating pressure for sustained comfort
>> AirSelect boots have improved width around the ankle area as well as uniformed sizing throughout the various sizes of the boot (XS-XL) - Three-strap system
- Evenly disperses pressure and helps reduce pooling of edema
- Ease of application
Sizing
| Part Number | Shoe Size Men | Shoe Size Women | Size |
|---|---|---|---|
| 01EP-XS | Up to 4 | Up to 5 | XS |
| 01EP-S | 4 - 7 | 5 - 8 | S |
| 01EP-M | 7 - 10 | 8 - 11 | M |
| 01EP-L | 10 - 13 | 11 - 15 | L |
| 01EP-XL | 13 | 15 | XL |
Product Specs
| Size | Height of Brace | Mid-Footbed Width | Toe Footbed Width | Calf Width |
|---|---|---|---|---|
| XS | 13.6" / 34.5cm | 3.4" / 8.6cm | 3.8" / 9.7cm | 4.0" / 10.2cm |
| S | 14.8" / 37.6cm | 3.6" / 9.1cm | 4.2" / 10.7cm | 4.25" / 10.8cm |
| M | 16.0" / 40.6cm | 4.1" / 10.4cm | 4.6" / 11.7cm | 5.0" / 12.7cm |
| L | 17.4" / 44.2cm | 4.5" / 11.4cm | 5.0" / 12.7cm | 5.0" / 12.7cm |
| XL | 18.2"/ 46.3cm | 5.0" / 12.7cm | 5.5" / 14.0cm | 5.5" / 14.0cm |
Material Components
Shell: POLYPROPYLENE
Front Panel: High Density Polyethylene
Straps: NYLON
Lined Aircells (Anterior and Posterior): POLYURETHANE w/ POLYESTER FABRIC
Inflation Pumps: TPU (Thermoplastic Polyurethane )
Liner: NYLON/POLYURETHANE/POLYESTER (Outer/Foam
/OSSer mesh)
Binding: POLYESTER
Outer Sole / Insole: EVA/RUBBER
Selector dial: NYLON
Sock (Elite): ACRYLIC/COTTON
